Mini 50W/100W Portable Fiber Laser Cleaner Rust Removal Laser Cleaning Machine

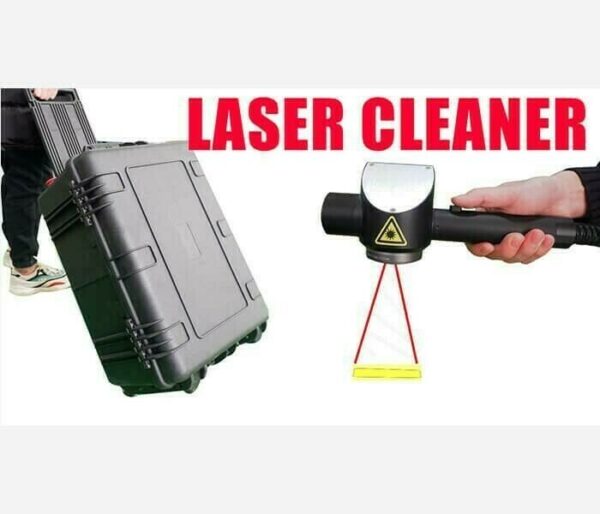

If you are looking for an affordable portable laser cleaning machine, which can laser cleaning for rust, painting, etc, trunk type cleaning machine like an Luggage box, you can move it to any place that you want. this laser cleaning system with control software, easy operation, handheld laser cleaner head with very light weight.

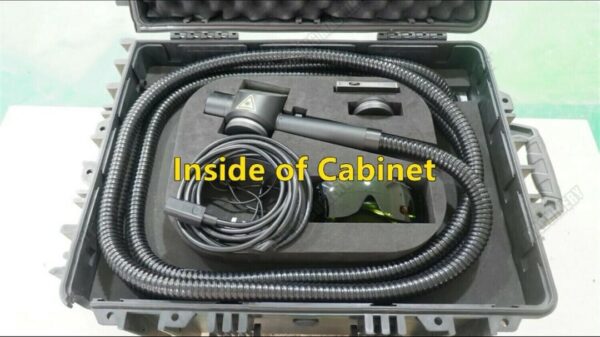

Laser cleaning machine detail as below:

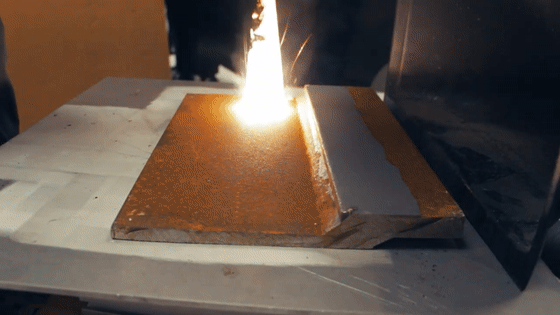

You can check some laser work by this laser rust removal machine below

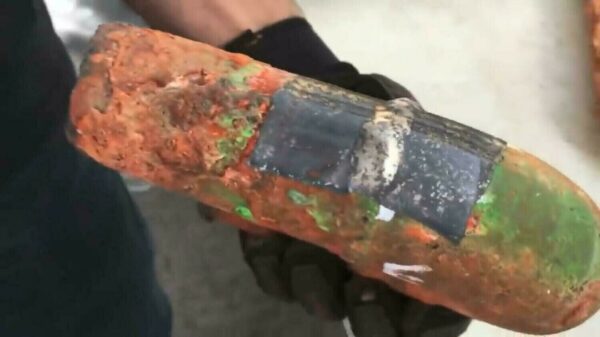

Copper alloy surface patina cleaning

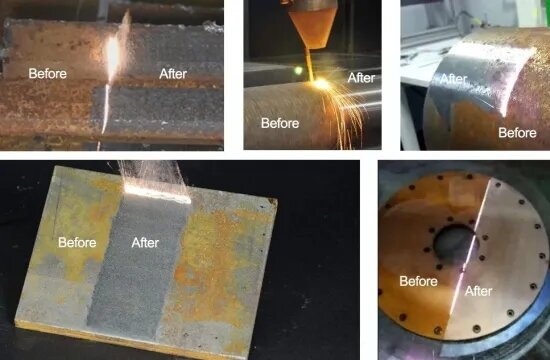

Oxide and pollutant cleaning on the surface of steel pipe

Even clear the soot and stains on the wood-Soot removal from 2X4 Wood

Parameters of laser cleaning machine

Model index		100W
M²		<2
Output armor cable length	m	5
Average output power	W	>100
Maximum pulse energy	mJ	1.5
Frequency adjustable range	kHz	1-4000
Pulse Width	ns	2-500
Unstable output power	%	<5
cooling method		Air-cooled
Supply voltage	V	48V
Maximum power consumption	W	<400
Environment supply current	A	>8
current Center wavelength	nm	1064
Spectral width@3dB	nm	<15
Polarization direction		at will
Whether anti-high reflection		Yes
Beam diameter	mm	4.0±0.5，7.5±0.5（customization）
Power adjustment range	%	0～100
range of working temperature	℃	0～40
Storage temperature range	℃	-10～60
Lasersourcesize	mm	350*280*112
Laser source weight	Kg	13.2

*Product characteristics for Laser cleaning machine

1.It can work offline, and it can be cleaned after power on

2.Laser collimation output, output spot size can be customized (default 4mm spot)

3.The laser cleaning head is extremely lightweight, weighs only 620g (without armor cable), and can be operated by hand for a long time

4.Patented red light assisted focusing technology, can adjust the focus position according to different field lenses

5.Wireless control, can realize parameter setting and light control remotely, and update parameters at any time

6.Portable trolley case design, the weight of the whole machine is 28kg, and it can be transported by high-speed rail or air consignment

7.Super strong integrated injection molding chassis, cushioning design, stable structure, wear resistance, shock resistance and drop resistance

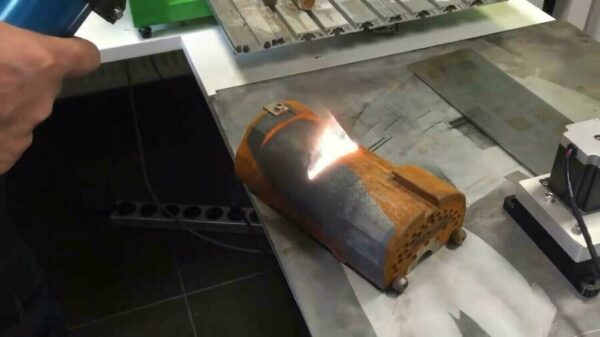

*You can have a quick view on laser cleaning work by this laser rust cleaning machine below:



* Detail size of laser head on Bogong Laser cleaning machine

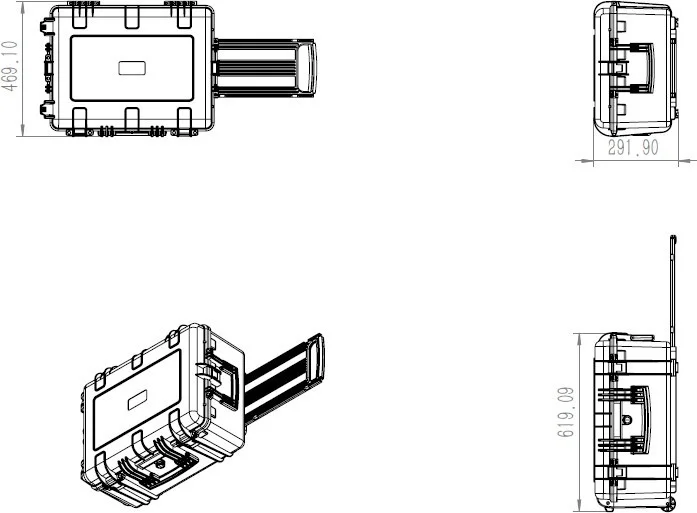

*Detail size of machine body

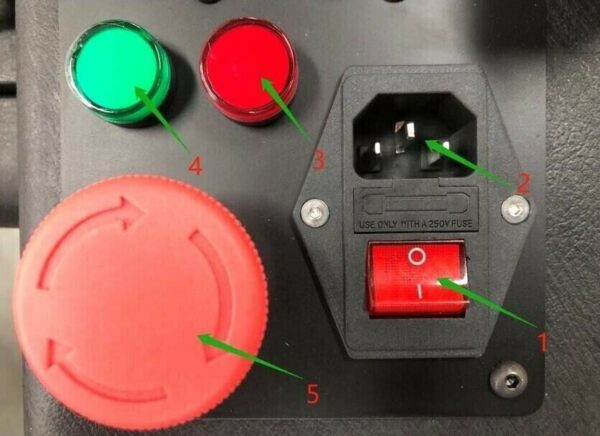

Description of the function of the indicator lights and interface buttons of the cabinet:

1. Power button, which is the button for turning on and off the laser cleaning machine

2. 220V AC power interface for laser cleaner

3. Laser indicator (the red indicator light is on when the laser is emitted, and the indicator light is turned off when the laser is turned off)

4. Power-on indication (after connecting the power cord, turn on the switch 1 and the green indicator light is on)

5. Emergency stop knob (turn the knob clockwise to shut down when the machine cannot be shut down in an emergency)
